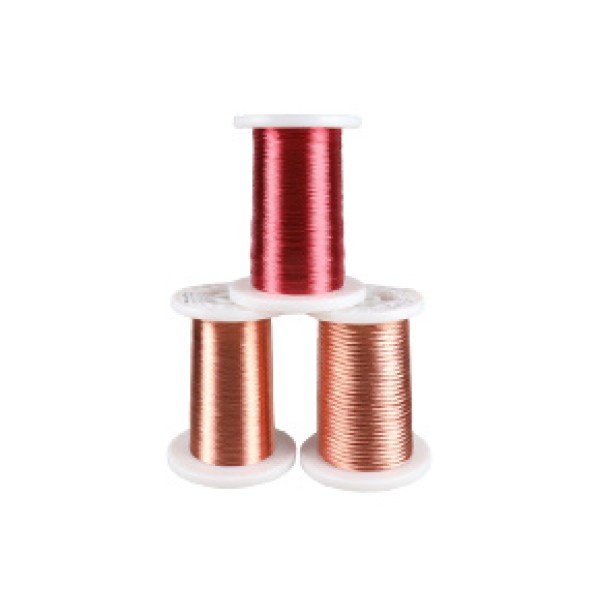

enameled stranded wire

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Hangzhou Weifeng Electronics Co., Ltd.

Enter Shop

Product Details

Enameled stranded wire, also known as Litz wire, is an insulated conductor composed of a number of enameled single wires twisted together in a specific structure and with a specific pitch.

Single Wire Diameter (mm)	0.03-1.00
Number of Strands	2-7000
Maximum Finished Outer Diameter (mm)	10
Insulation Class	Class B/Class F/Class H
Insulation Type	Polyurethane / Polyurethane Composite Enamel
Insulation Thickness	0UEW/1UEW/2UEW/3UEW
Stranding Type	Single Stranding / Multi-level Stranding
Withstand Voltage (V)	>1500
Stranding Direction	Right-hand (S) / Left-hand (Z)
Lay Length	4-110mm
Color	Natural / Red
Spool Size	PT-4/PT-10/PT-15
Features	Compared to single conductors, for the same conductor cross-sectional area, the surface area of stranded wire is greatly increased, effectively suppressing the skin effect and significantly enhancing the inductor Q value.
Applications	High-frequency transformers and inductors, communication equipment, ultrasonic equipment, video equipment, radio equipment, induction heating equipment, etc.
Product Certifications	ISO9001/ISO14001/IATF16949, UL/RoHS/REACH
