Compatibility Range
Magnetic ring outer diameter 22/80 Wire diameter within 3.5 Unlimited length As long as the inner hole supports, common mode, differential mode, three-phase, four-phase, disc-shaped, multi-wire parallel winding products and spring wires can all be processed.

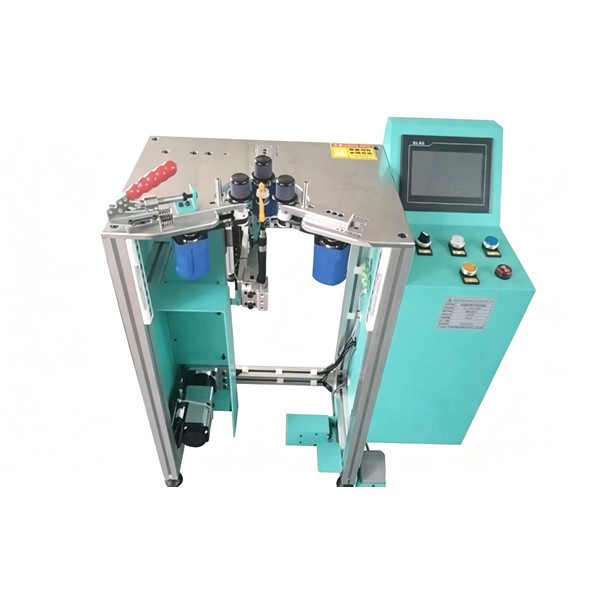

Machine dimensions: Length 70CM Width 42CM Height 95CM, Weight 62KG
Exclusive Feature Highlights
1. Dual system function: This machine is equipped with both an intelligent hook-wire system and a follow-up hook-wire system, allowing one-click switching between operating systems based on different products.
2. In the intelligent system, when the hook needle moves up and down, it can only move continuously downward or upward within the stroke range, suitable for winding products within 5 meters.
3. In the follow-up system, when the hook needle moves up and down, it can stop at any position within the stroke range, offering significant advantages in winding long wire products and multiple extra-thick wires.
